Hybrid heat rejection for peak conditions, engineered around climate and project load.
Overview

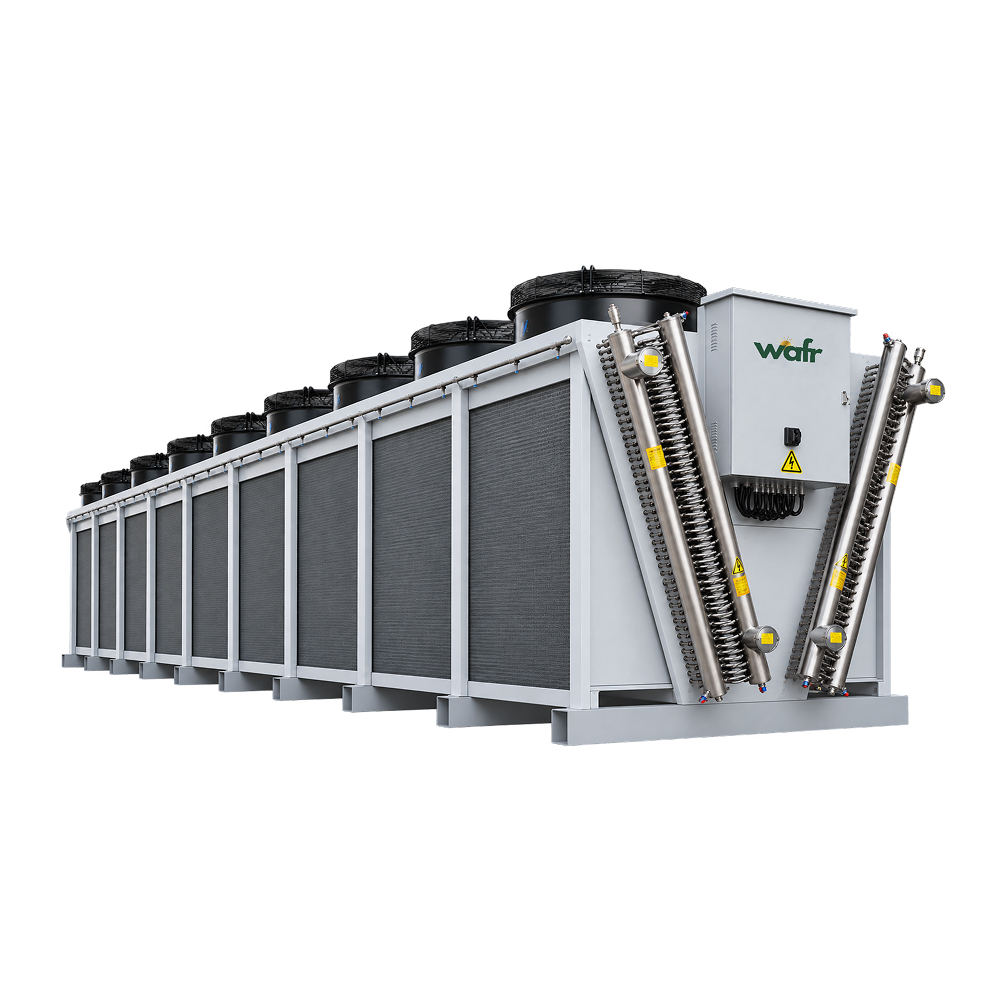

Wafr supplies adiabatic dry cooler systems for applications requiring reliable heat rejection during high ambient conditions. Adiabatic pads pre-cool incoming air before it passes across the heat exchanger, increasing heat-rejection capability during peak temperatures while allowing the system to operate dry when ambient conditions permit.
Systems can be configured around project-specific cooling loads, design temperatures, fluid conditions, water availability, noise requirements, and site constraints.
COOLING CAPACITY
Project specific
ADIABATIC SYSTEM
Wetted media / pad assisted
WATER USE
On-demand during peak conditions
PEAK PERFORMANCE
Enhanced heat rejection
OPERATING MODE
Dry / Adiabatic-assisted
https://cdn.prod.website-files.com/6a838ff6d7b603ad9aeaed44/6ac83040c4eb8073b94c8a3c_wafr_adiabatic_dry_coolers_capabilities_video_v3.mp4
Six transformer families, from single-phase distribution through substation power and custom-engineered transformers.
Five switchgear platforms engineered for Wafr's project scope.
Engineering
Representative specification framework. Final performance data depends on climate strategy and duty point.
Structured so engineering and procurement teams can review key ranges quickly.
Heat rejection
Project specific
Operating mode
Dry / adiabatic
Fluid
Water / glycol
Ambient design
Climate specific
Water use
Demand based
Fan control
Variable speed
Controls
Standard & custom
Configuration
Standard & custom
