Cold storage that charges on off-peak power and discharges into the chilled-water loop. No new electrical service, no chiller replacement.
Overview

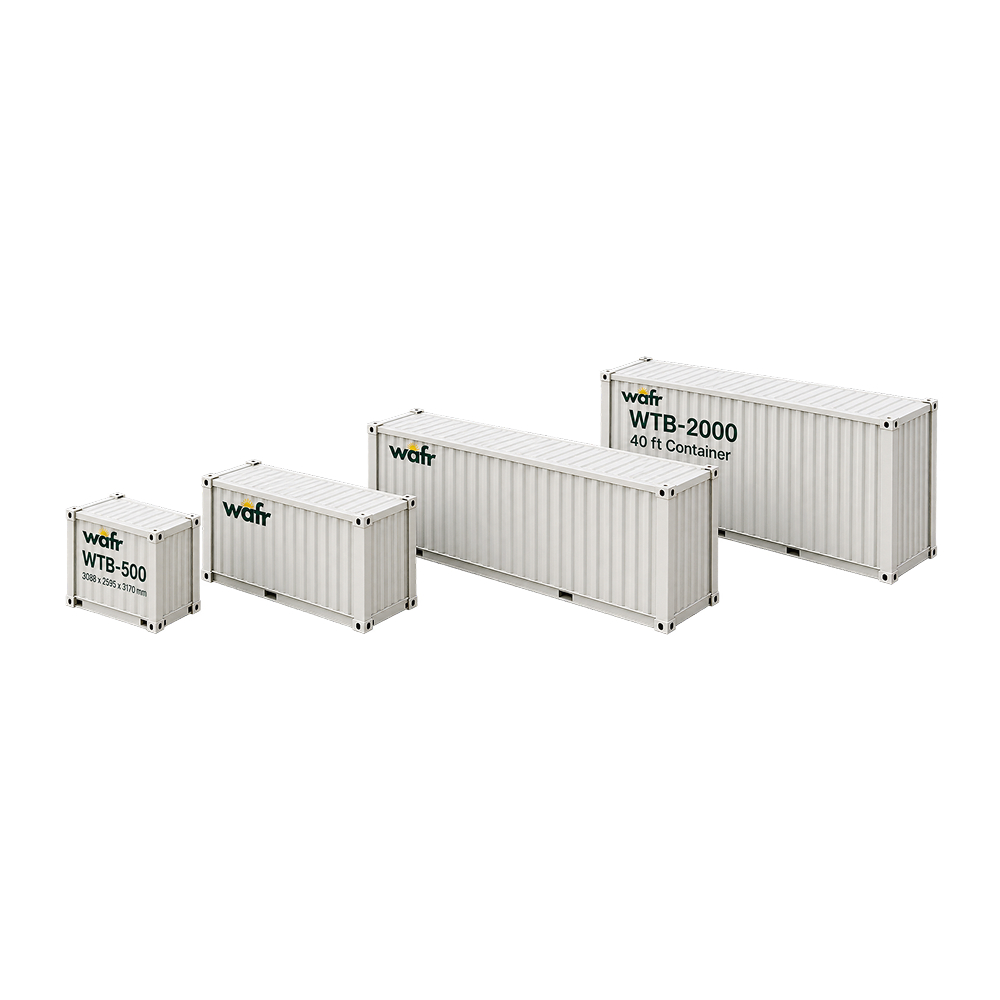

The WTB Series stores cooling for use when it is needed later. The thermal battery uses storage medium to absorb and retain cooling, then releases that stored cooling back into a facility’s water loop on demand. In chiller-based systems, the battery can be charged during cooler nighttime hours, when chillers can operate more efficiently, and discharged during hotter or higher-demand periods. This allows cooling production to be shifted away from peak conditions, reducing daytime chiller load and peak electrical demand.
Different storage temperatures are available for applications ranging from conventional chilled-water and cold-storage systems to higher-temperature cooling loops, including data centres, commercial HVAC and industrial cooling. WTB units are designed for integration with new or existing cooling infrastructure.
THERMAL STORAGE
500 to 2,000 kWh(th) per unit
OPERATING TEMPERATURE
Configured to application
CHARGE + DISCHARGE
Automated thermal load shifting
https://cdn.prod.website-files.com/6a838ff6d7b603ad9aeaed44/6a91ee94b3bb195a7f07b747_wafr_tsb_capabilities_video.mp4
Six transformer families, from single-phase distribution through substation power and custom-engineered transformers.
Five switchgear platforms engineered for Wafr's project scope.
Engineering
Specification framework for the WTB Commercial series (WTB-500 to WTB-1500); final chiller sizing and storage grade confirmed against project chilled-water loop parameters.
Structured so engineering and procurement teams can review key ranges quickly.
Grade C7
7.5 ± 1 °C · 5 °C inlet · 7–12 °C discharge
Grade C18
18 ± 1 °C · 15 °C inlet · 18–23 °C discharge
WTB-500
500 kWh(th) · 20 m³/h · 3,808×2,896×3,170 mm
WTB-1000
1,000 kWh(th) · 40 m³/h · 6,800×2,896×3,170 mm
WTB-1500
1,500 kWh(th) · 58 m³/h · 9,300×2,896×3,170 mm
Working Pressure
0.8 – 1.0 MPa
Charging Window
Networked automatic program control
Control
Networked automatic program control
Liquid-Filled Distribution
oil-immersed
transformers
Fluid Coolers
fluid-coolers
dry-coolers
WTB Commercial
wtb-commercial
thermal-storage-battery
Three-Phase Pad-Mounted
pad-mount
transformers
Freon Condensers
freon-condensers
dry-coolers
Single-Phase Pole-Mounted
pole-mounted
transformers
Ammonia Condensers
ammonia-condensers
dry-coolers
Dry-Type & Cast-Coil
dry-type
transformers
CO2 Gas Coolers
gas-coolers
dry-coolers
Oil Coolers
oil-coolers
dry-coolers
Medium & Large Power
power-transformers
transformers
Parameter
Unit
WTB-1500
WTB-1000
WTB-500
45–3,000 kVA
4.16–34.5 kV / 600Y/347–208Y/120 V
Delta–Wye grounded
ONAN
CSA C802.1 / IEEE C57.12.00
oil-immersed
15–7,500 kVA
Up to 35 kV / 600Y/347–208Y/120 V
—
AN / AF
CSA C9 / CAN/CSA C802.2
dry-type
10–167 kVA
7.2 / 7.62 / 14.4 / 19.9 kV / 120/240 V
Single-phase
ONAN
CSA C227 series
pole-mounted
750 kVA
12.47 kV / 600Y/347 V
—
ONAN
CSA C227.4 / IEEE C57.12.34
pad-mount
470–2,190 kW
Water / Glycol
1.8–3.2 mm
20 ft (6,058 mm) / 40 ft (12,192 mm)
AC / EC / marine / explosion-proof
fluid-coolers
343–2,005 kW
R404A
1.8–3.2 mm
20 ft (6,058 mm) / 40 ft (12,192 mm)
AC / EC / marine / explosion-proof
freon-condensers
420–2,237 kW
NH3
1.8–3.2 mm
20 ft (6,058 mm) / 40 ft (12,192 mm)
AC / EC / marine / explosion-proof
ammonia-condensers
407–1,267 kW
CO2 (94 Bar)
1.8–3.2 mm
20 ft (6,058 mm) / 40 ft (12,192 mm)
AC / EC / marine / explosion-proof
gas-coolers
240–1,309 kW
ISO VG 46 oil
1.8–3.2 mm
20 ft (6,058 mm) / 40 ft (12,192 mm)
AC / EC / marine / explosion-proof
oil-coolers
Maximum nominal cold storage capacity
kWh(th)
1,500
1,000
500
wtb-commercial
3–200+ MVA
69 kV / 25 kV
Project specific
ONAN / ONAF / OFAF / ODAF
CSA C88 / IEEE C57
power-transformers
1,000 kVA
13.8 kV / 600Y/347 V
—
ONAN
CSA C227.4 / IEEE C57.12.34
pad-mount
3–200+ MVA
69 kV / 13.8 kV
Project specific
ONAN / ONAF / OFAF / ODAF
CSA C88 / IEEE C57
power-transformers
Phase-change temperature
°C
Grade C7: 7.5 ± 1 · Grade C18: 18 ± 1
Grade C7: 7.5 ± 1 · Grade C18: 18 ± 1
Grade C7: 7.5 ± 1 · Grade C18: 18 ± 1
wtb-commercial
1,500 kVA
13.8 kV / 600Y/347 V
—
ONAN
CSA C227.4 / IEEE C57.12.34
pad-mount
3–200+ MVA
115 kV / 34.5 kV
Project specific
ONAN / ONAF / OFAF / ODAF
CSA C88 / IEEE C57
power-transformers
Charging water inlet temperature
°C
C7: 5 · C18: 15
C7: 5 · C18: 15
C7: 5 · C18: 15
wtb-commercial
2,000 kVA
24.9 kV / 600Y/347 V
—
ONAN
CSA C227.4 / IEEE C57.12.34
pad-mount
3–200+ MVA
115 kV / 13.8 kV
Project specific
ONAN / ONAF / OFAF / ODAF
CSA C88 / IEEE C57
power-transformers
Discharge outlet temperature
°C
C7: 7–12 · C18: 18–23
C7: 7–12 · C18: 18–23
C7: 7–12 · C18: 18–23
wtb-commercial
2,500 kVA
24.9 kV / 600Y/347 V
—
ONAN
CSA C227.4 / IEEE C57.12.34
pad-mount
3–200+ MVA
138 kV / 34.5 kV
Project specific
ONAN / ONAF / OFAF / ODAF
CSA C88 / IEEE C57
power-transformers
Peak discharge temperature
°C
C7: 16.8 · C18: per test report
C7: 16.8 · C18: per test report
C7: 16.8 · C18: per test report
wtb-commercial
3,000 kVA
34.5 kV / 600Y/347 V
—
ONAN
CSA C227.4 / IEEE C57.12.34
pad-mount
3–200+ MVA
138 kV / 25 kV
Project specific
ONAN / ONAF / OFAF / ODAF
CSA C88 / IEEE C57
power-transformers
Storage method
—
Latent (phase change)
Latent (phase change)
Latent (phase change)
wtb-commercial
Up to 10 MVA
Project specific
—
ONAN
CSA C227.4 / IEEE C57.12.34
pad-mount
3–200+ MVA
230 kV / 34.5 kV
Project specific
ONAN / ONAF / OFAF / ODAF
CSA C88 / IEEE C57
power-transformers
Rated flow rate
m³/h
58
40
20
wtb-commercial
Water supply pipe diameter
DN
150
150
100
wtb-commercial
Working pressure
MPa
0.8–1.0
0.8–1.0
0.8–1.0
wtb-commercial
Pressure drop
kPa
76.8
65.7
50.7
wtb-commercial
Recommended pipe velocity
m/s
0.8
0.8
0.8
wtb-commercial
Recommended chiller capacity
kW
Per configuration
142–165
70–80
wtb-commercial
Recommended charging window
h
≈ 8 (off-peak / valley tariff)
≈ 8 (off-peak / valley tariff)
≈ 8 (off-peak / valley tariff)
wtb-commercial
Recommended discharge window
—
Local peak tariff hours
Local peak tariff hours
Local peak tariff hours
wtb-commercial
Control
—
Networked automatic program control
Networked automatic program control
Networked automatic program control
wtb-commercial
Unit size (L × W × H)
mm
9,300 × 2,896 × 3,170
6,800 × 2,896 × 3,170
3,808 × 2,896 × 3,170
wtb-commercial
Operating weight
kg
≥ 36,000
≥ 26,500
≥ 14,300
wtb-commercial
Operating cycle: chiller charges the WTB off-peak (~8 h, the storage medium solidifies); the unit then holds charge with no compressor duty until peak hours, when the chiller stops and the stored cooling is released to serve the terminal load.
No increase to the site's electrical service capacity is required, and the existing chiller and machine head are retained.
WTB-2000 is a 2,000 kWh(th) containerized packaged unit for industrial and data-centre cooling; full parameters issued on request.
Figures are carried over from source equipment data and shall be re-verified against Wafr factory test reports before contractual use; Grade C18 values are provisional pending test-report confirmation.
